Description
- High-concerned chemical: None
- Dimensions: M3*20
- DIY Supplies: Woodworking
- is_customized: Yes
- Drive Style: Phillips
- Model Number: M1 M2 M3 M3.5 M4 M5 M6
- Head Style: Flat
- Screw Type: Self-tapping Screws
- Material: Stainless steel
- Brand Name: ZONSANTA
- Origin: Mainland China
- Certification: None
- Package Quantity: Under 50Pcs
- Product Name: Wood screw
- Product Name 2: Wood Bolt
- Head Style: Countersunk head tapping screw
- About Us: ZONSANTA Screw Factory in China
Welcome to ZONSANTAScrew Store

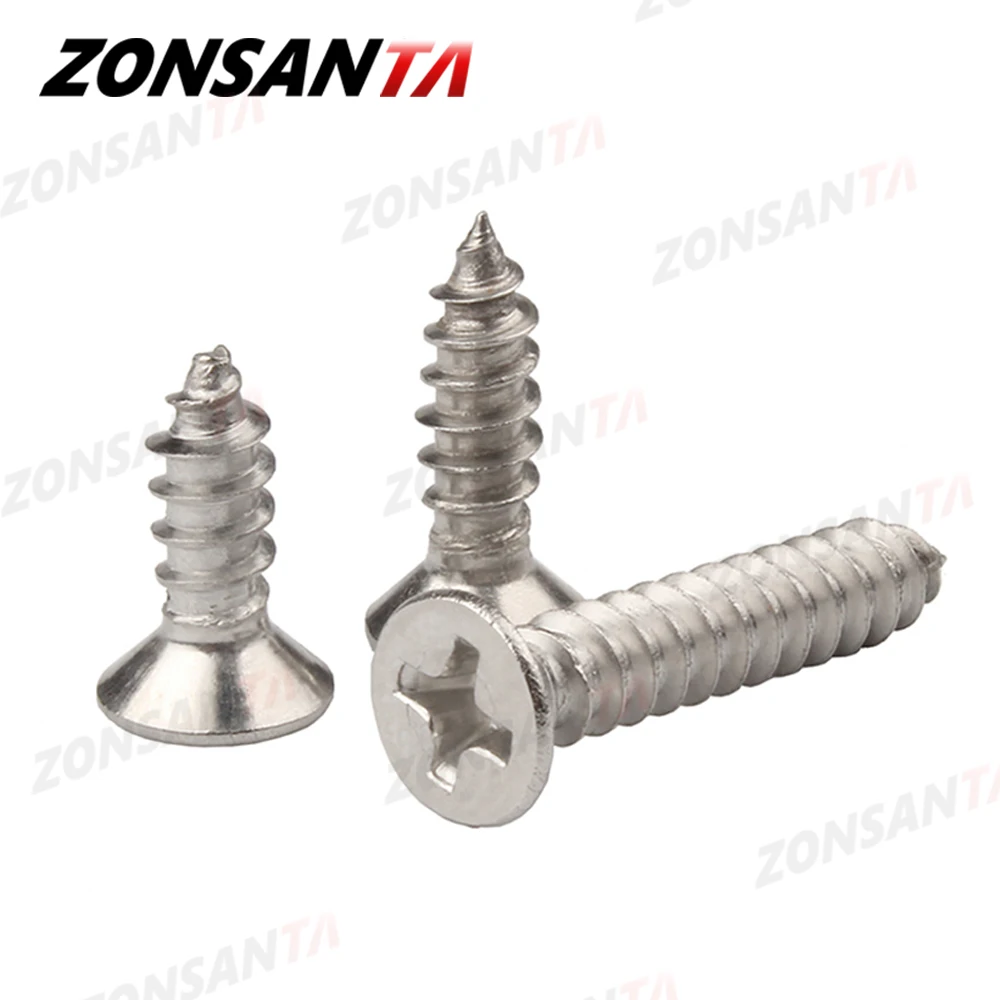

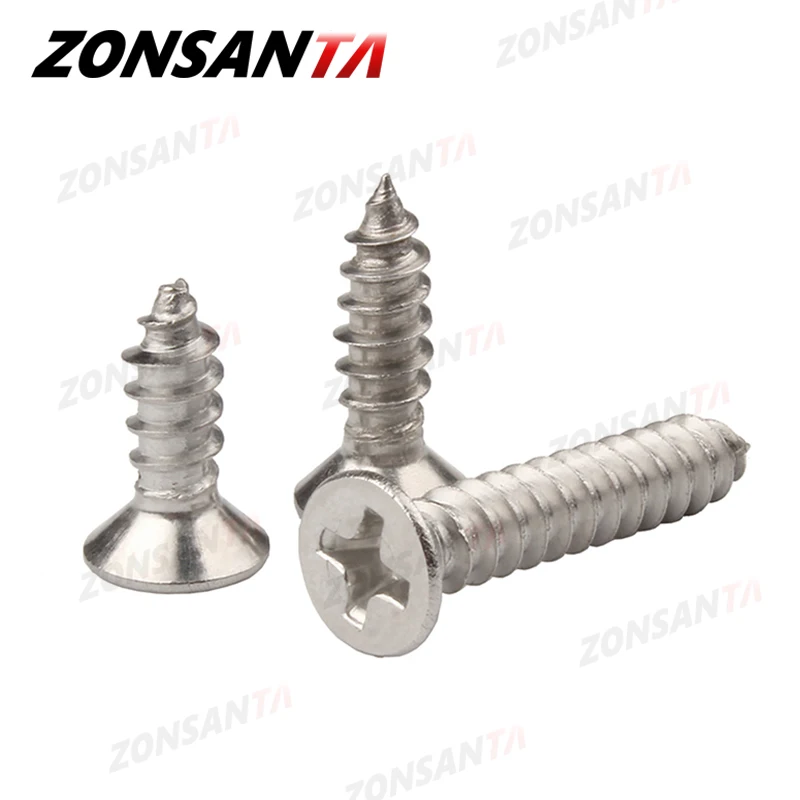

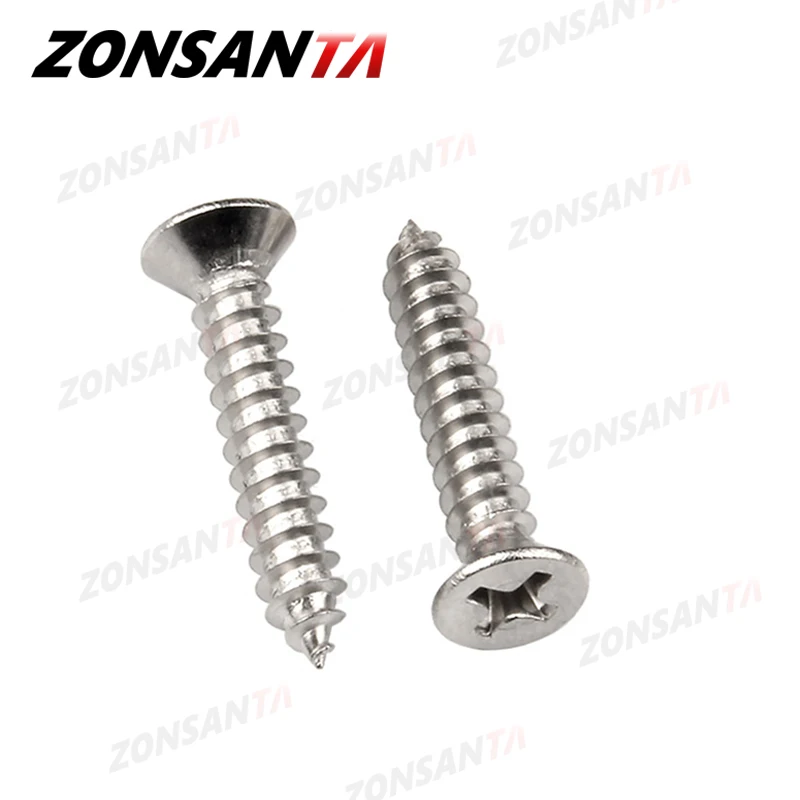

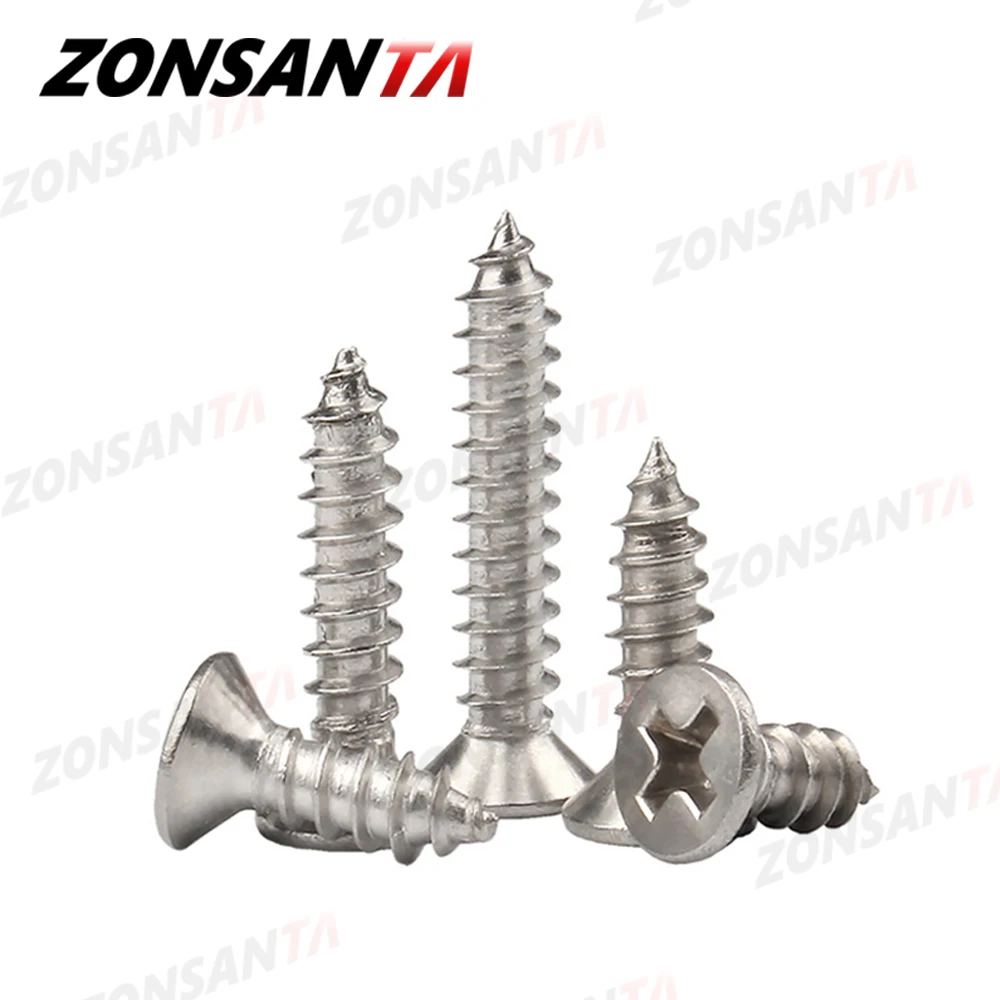

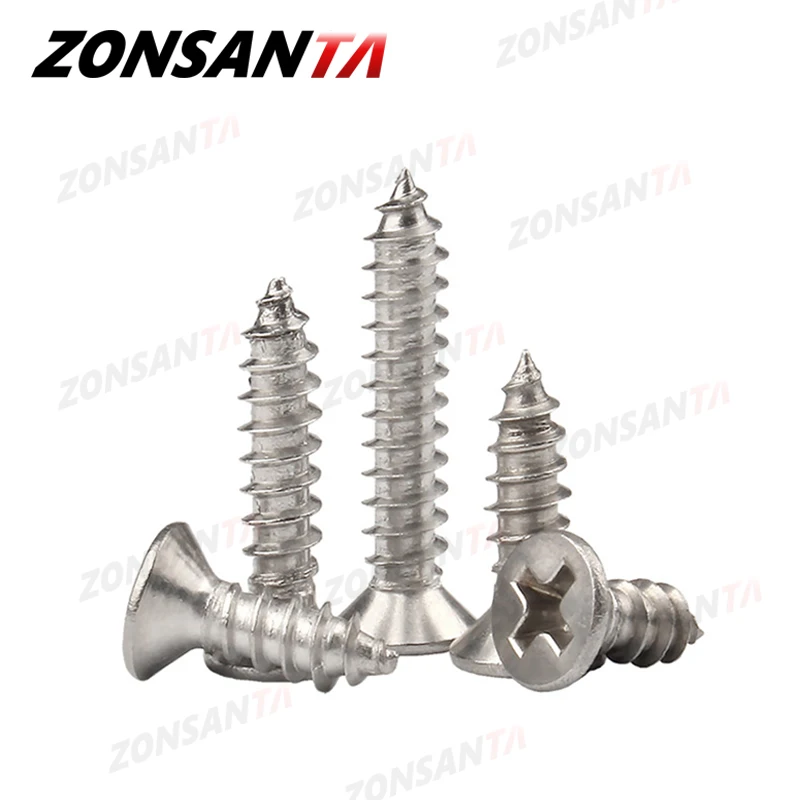

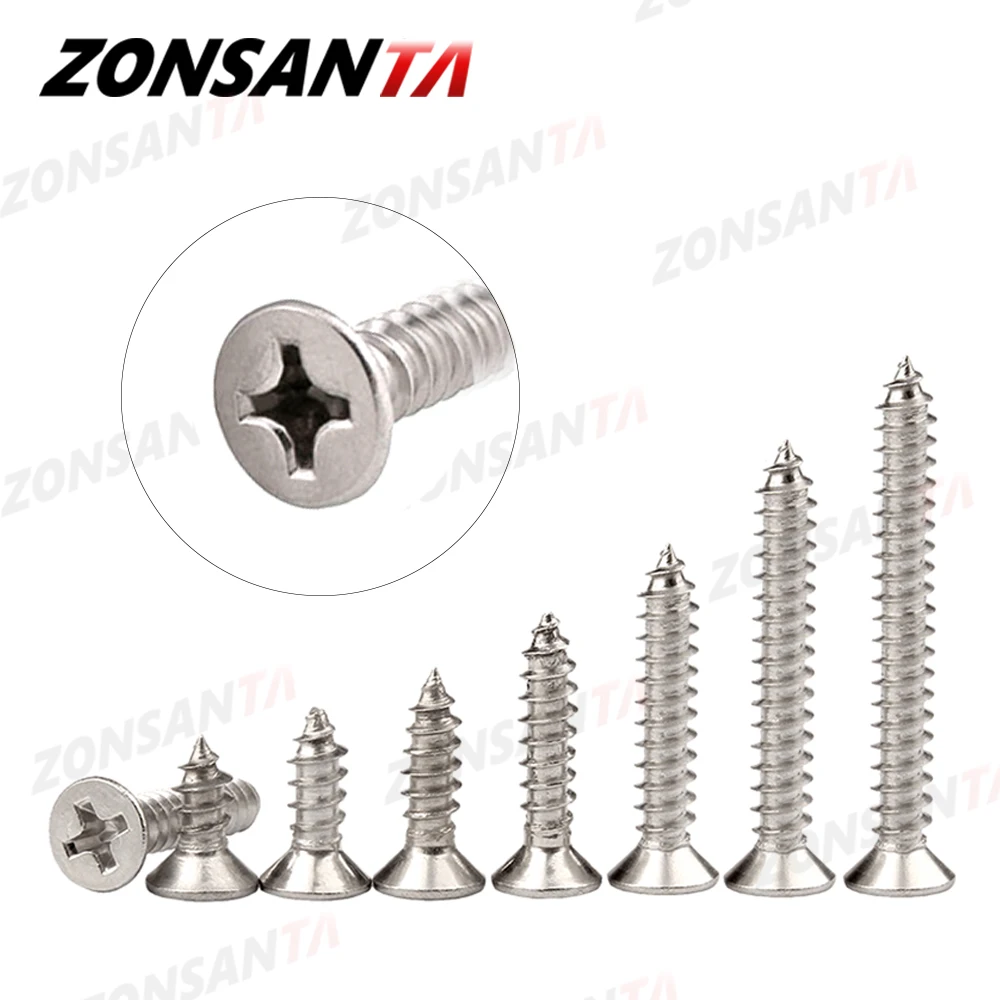

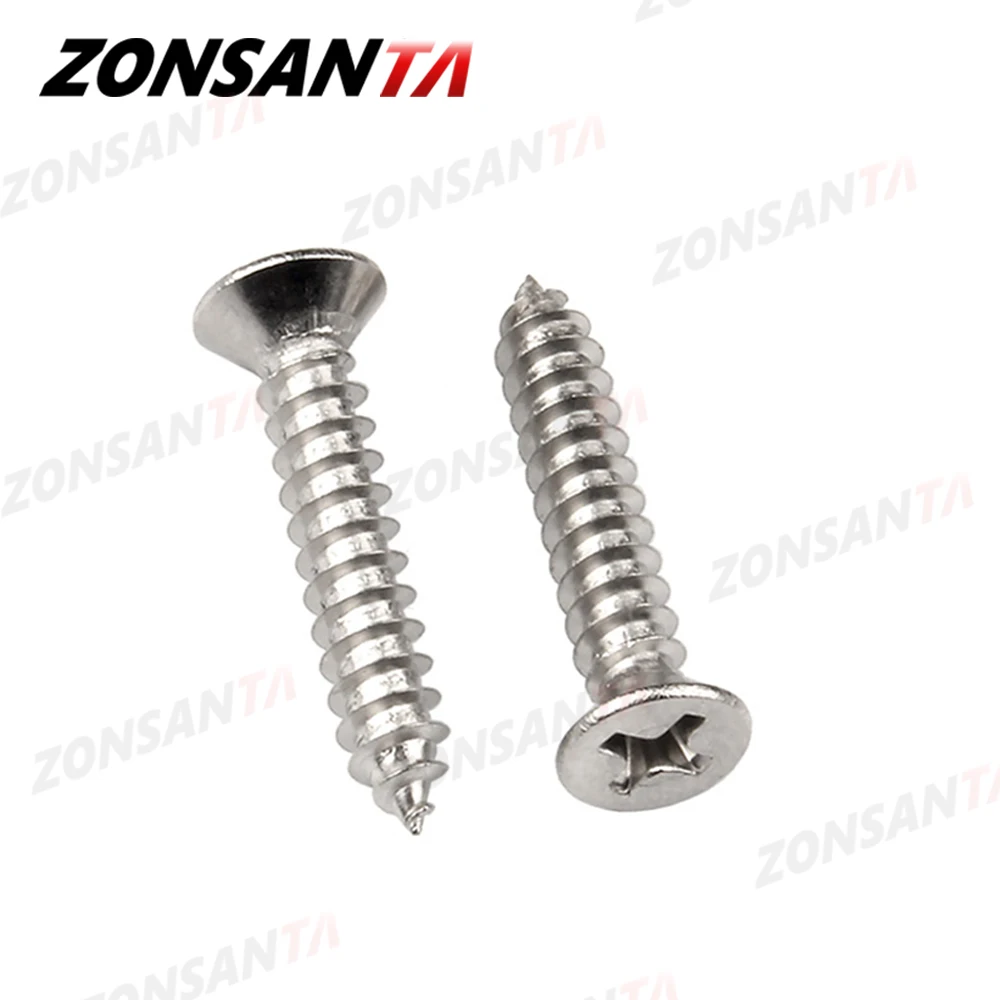

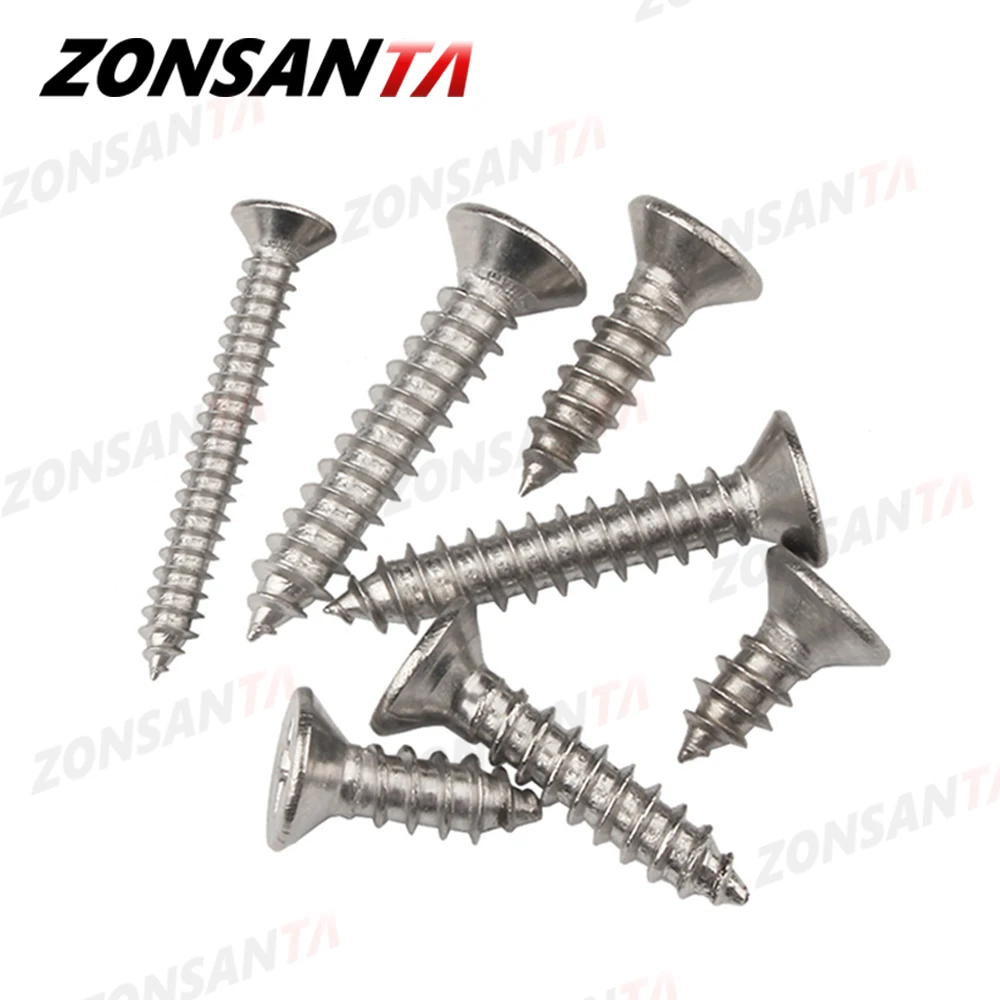

ZONSANTA M1.4 M1.7 M2 M2.3 M2.6 M3 M4 M5 M6 304 Stainless steel Cross recessed countersunk Flat head tapping screws Wood Screw
Product Detail
-
Product Name :M1.4 M1.7 M2 M2.3 M2.6 M3 M4 M5 M6 304 Stainless steel Cross recessed countersunk Flat head tapping screws Wood Screw
-
Product Color:Silver Gray
-
Material:304 Stainless steel
-
Screw head type:Phillips
-
Package Content:M1.4-M3.5(A pack of 50pcs) , M4(A pack of 20pcs)
M5-M6(A pack of 10pcs)
Features
100% Brand new,High quality with excellent customer service
The cross self-tapping screws does not need to be used with the nuts
The Tooth thread is self-tapping, and the triangular tooth self-extrusion screw at the end point is formed.
When it is screwed into the hole of plastic metal,the wood or thin iron material, the internal thread is formed.
Extrusion and the reliable locking thread connection is formed in the hole
|

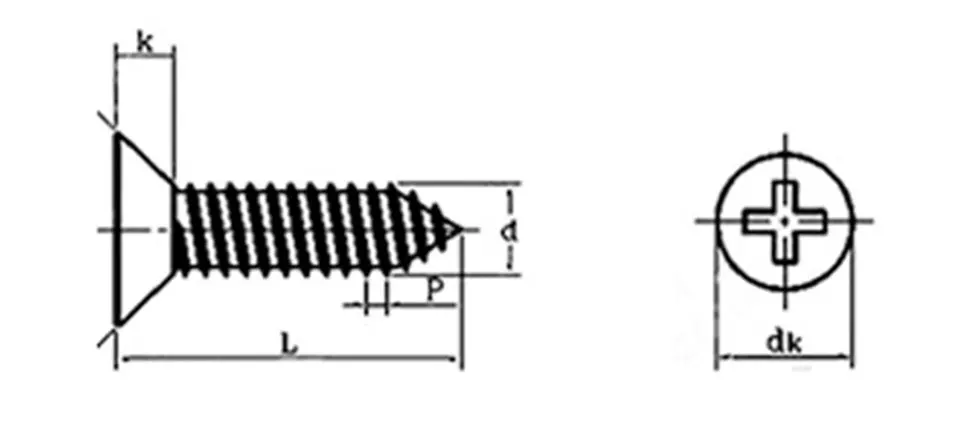

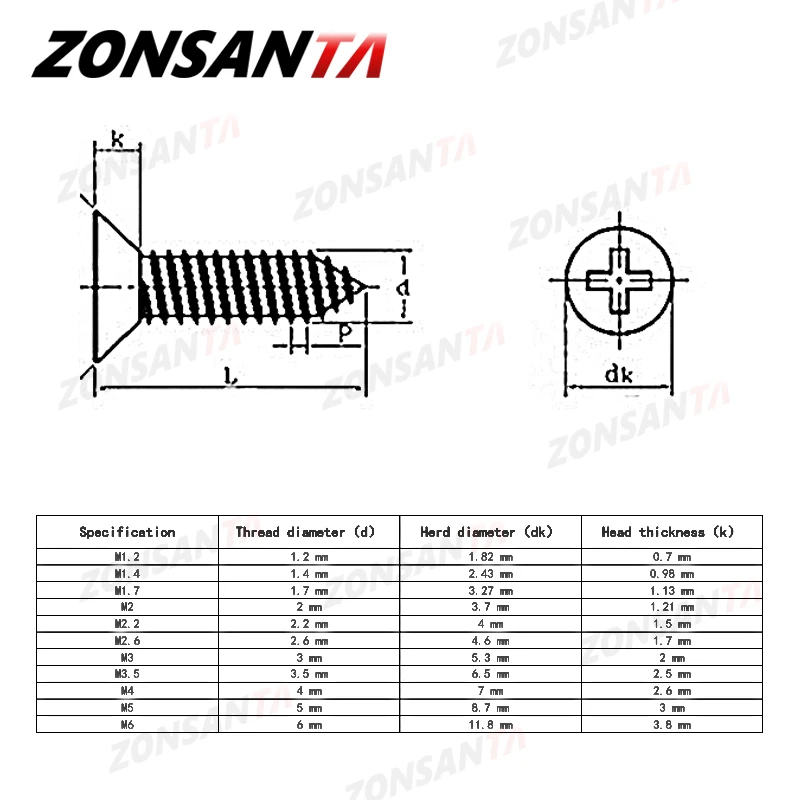

Specification |
Thread diameter（d） |
Herd diameter（dk） |
Headthickness（k） |
|
M1.2 |
1.2 mm |
1.82 mm |
0.7 mm |
|
M1.4 |
1.4 mm |
2.43 mm |
0.98 mm |
|
M1.7 |
1.7 mm |
3.27 mm |
1.13 mm |
|
M2 |
2 mm |
3.7 mm |
1.21 mm |
|
M2.2 |
2.2 mm |
4 mm |
1.5 mm |
|
M2.6 |
2.6 mm |
4.6 mm |
1.7 mm |
|
M3 |
3 mm |
5.3 mm |
2 mm |
|
M3.5 |
3.5 mm |
6.5 mm |
2.5 mm |
|
M4 |
4 mm |
7 mm |
2.6 mm |
|
M5 |
5 mm |
8.7 mm |
3 mm |
|
M6 |
6 mm |
11.8 mm |
3.8 mm |
