Description
- High-concerned chemical: None
- Engraving Area: Other
- Laser Power: Other
- Certification: CE
- Origin: Mainland China
- Certification: ce
- Brand Name: honorfuture
- Model Number: HF6012
Contact Now!
More discount, feel free to contact :
Jinan HonorFuture Machiney Co.,Ltd:
Email: sales01@honorfuturecnc.com
Whatsapp:+86 17861404934

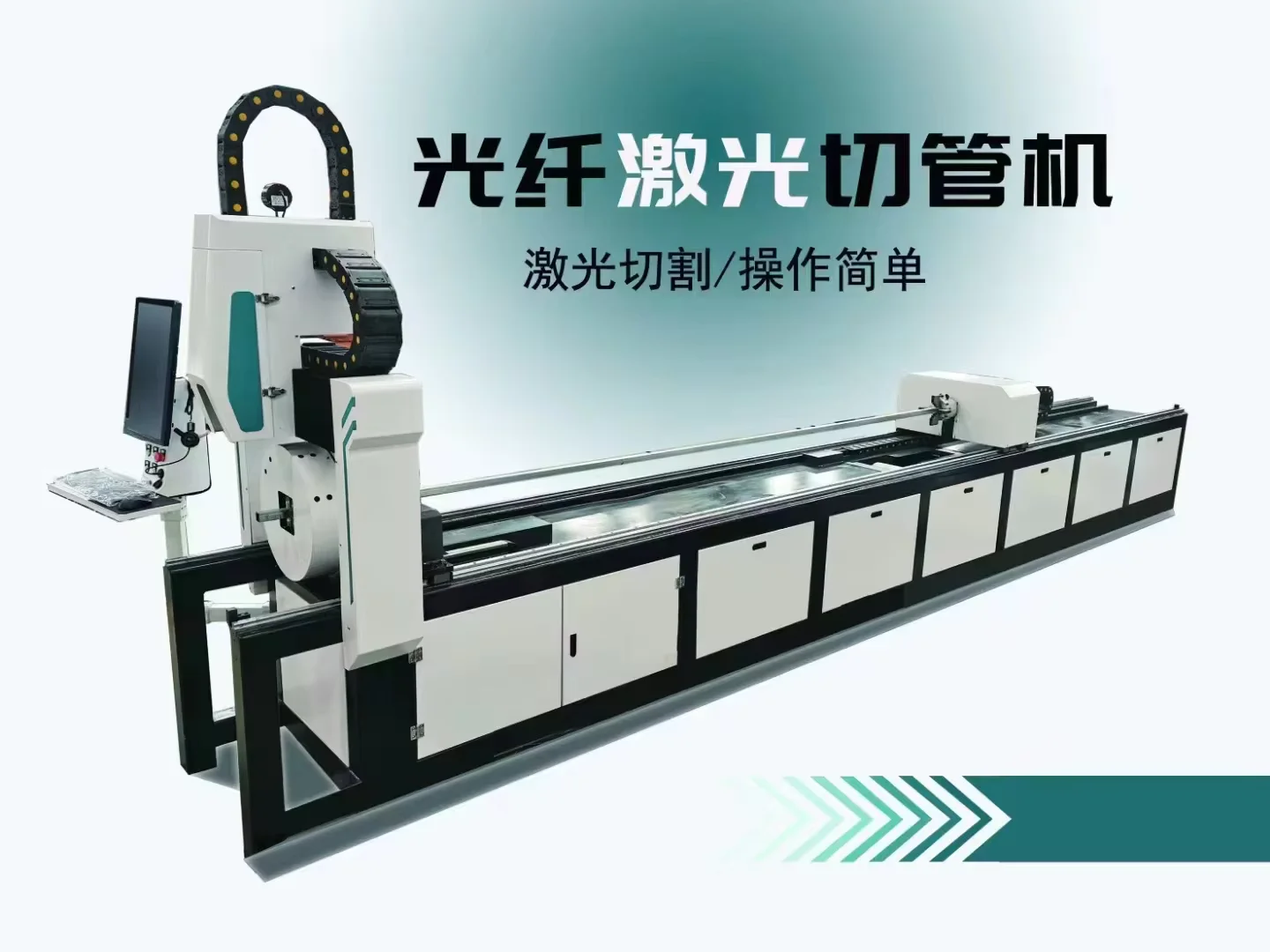

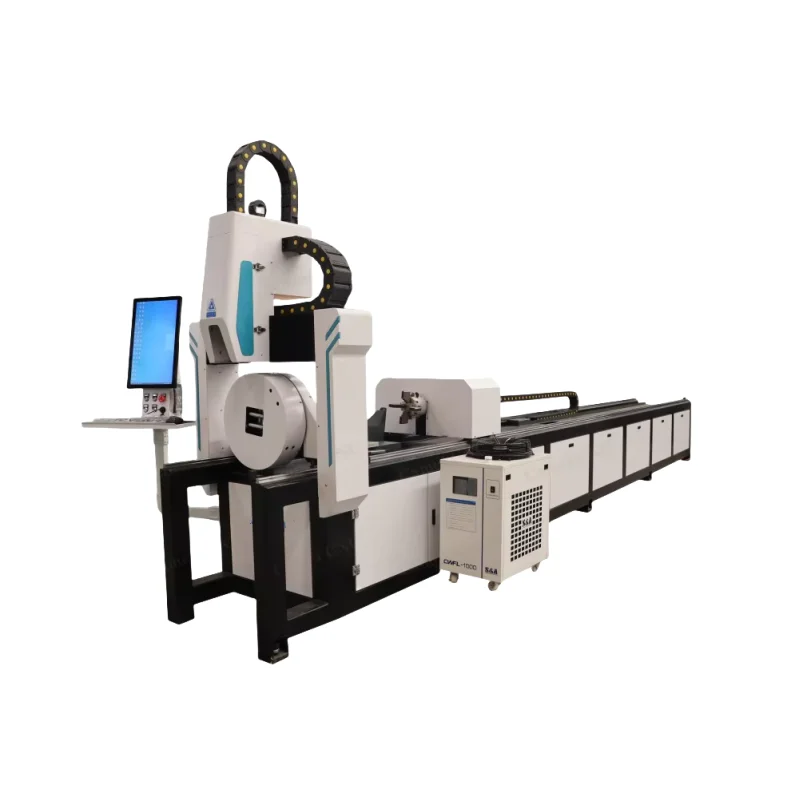

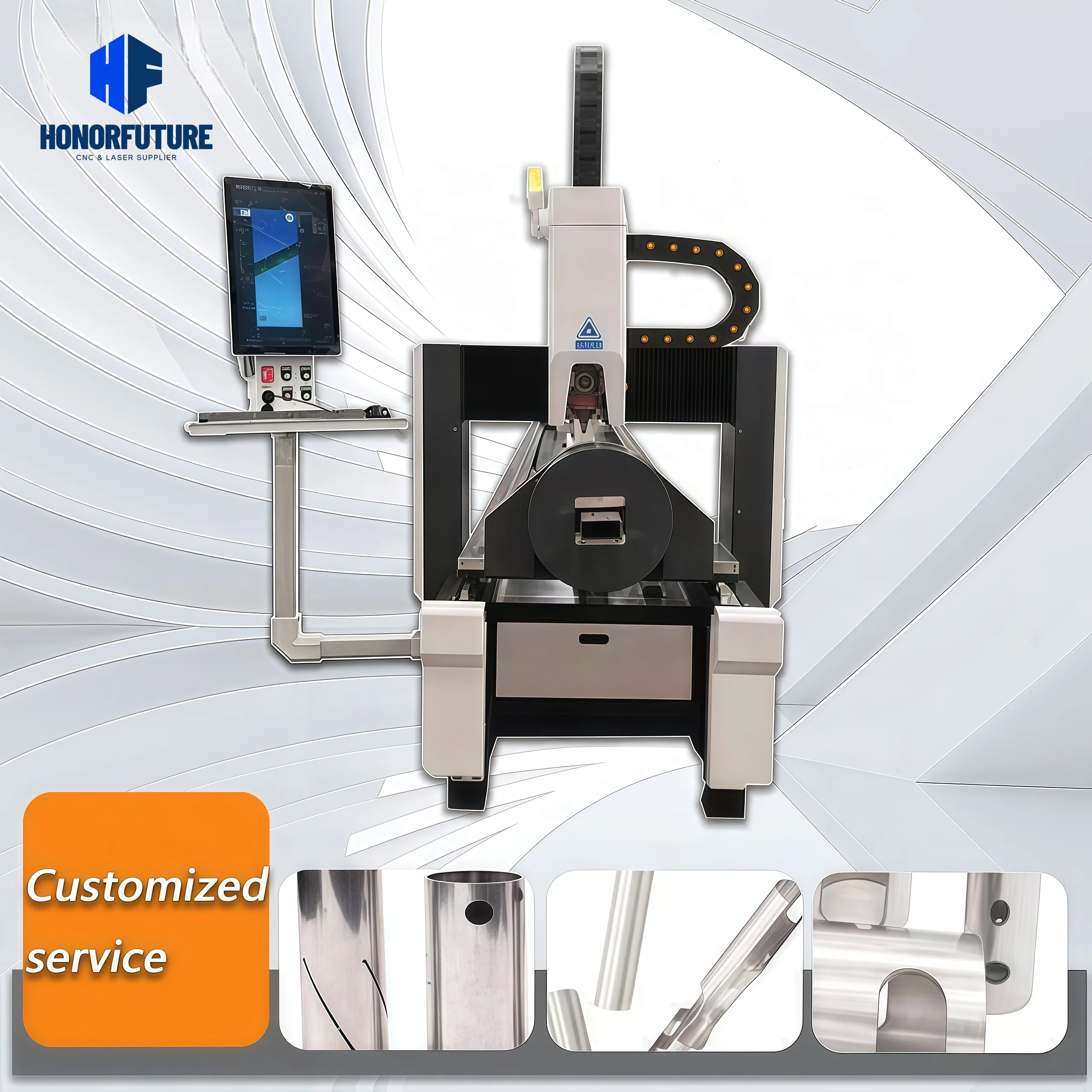

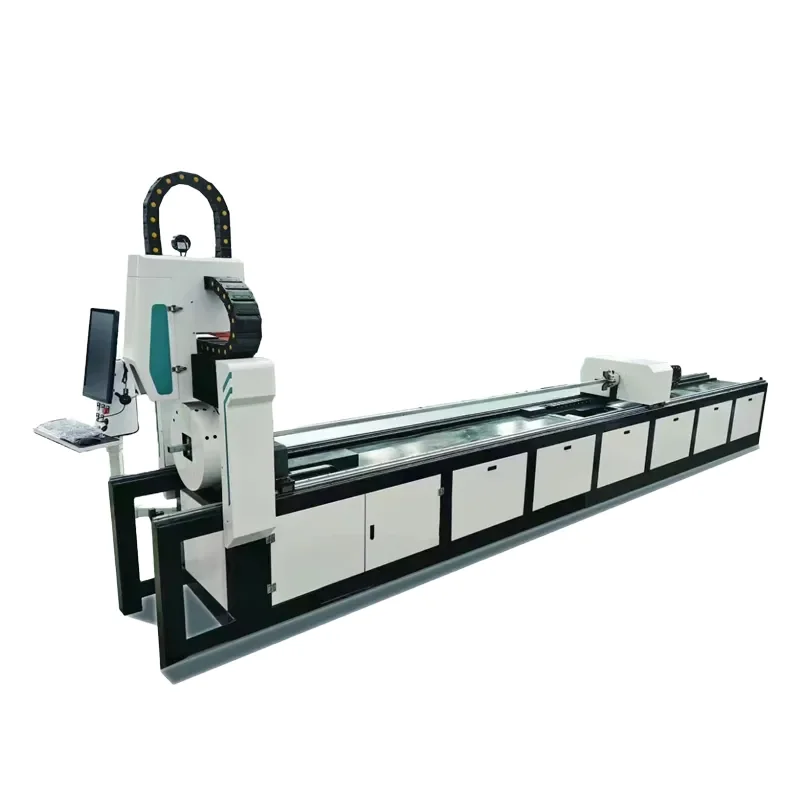

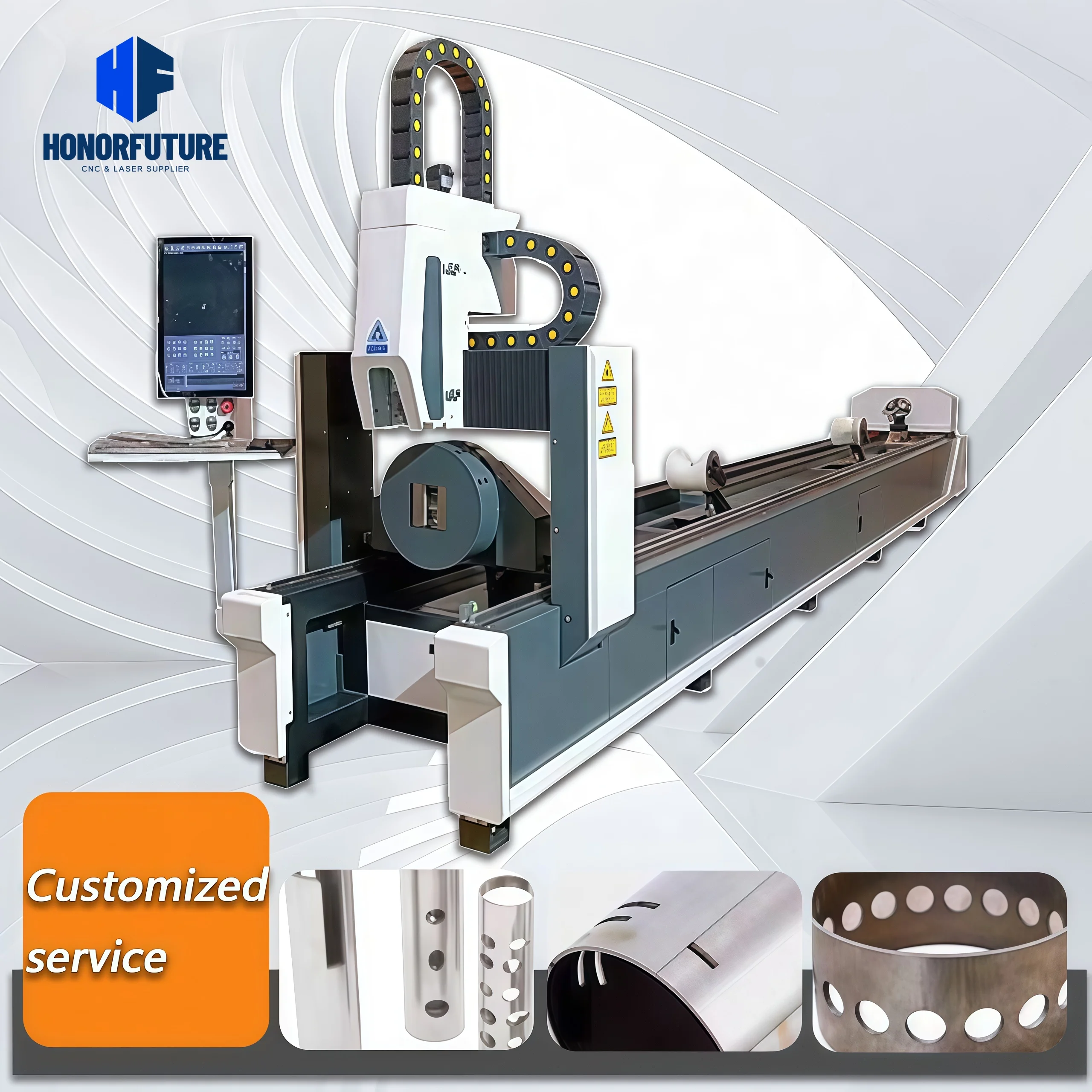

Automatic Tube Laser Cutter Profile and Stainless Steel 3 Chuck Pipe CNC Fiber Laser Cutting Machine
Product Description
Details
Advantages
|
Model |
HF6010 Tube & Pipe laser cutting machine |
|
Max Holding diameter |
100mm |
|
Laser Power |
1500W(Optional Power:2000W, 3000W,4000W ) |
|
Laser Generator |
MAX/Raycus/RceOption) |
|
Laser Wave Length |
1080（±10）nm |
|
Working Table |
Sawtooth table |
|
Position Accuracy |
±0.02mm/m |
|
Repeat Positional Accuracy |
± 0.01mm |
|
Control System |
Shanghai Fangling Control System |
|
Reducer |
Japan SHIMPO planetary reducer |
|
Working Voltage |
380V ±10 % 50/60Hz |
|
Auxiliary Gas |
Oxygen, Nitrogen, Air |
|
Working life of fiber module |
More than 100000 hours |
|

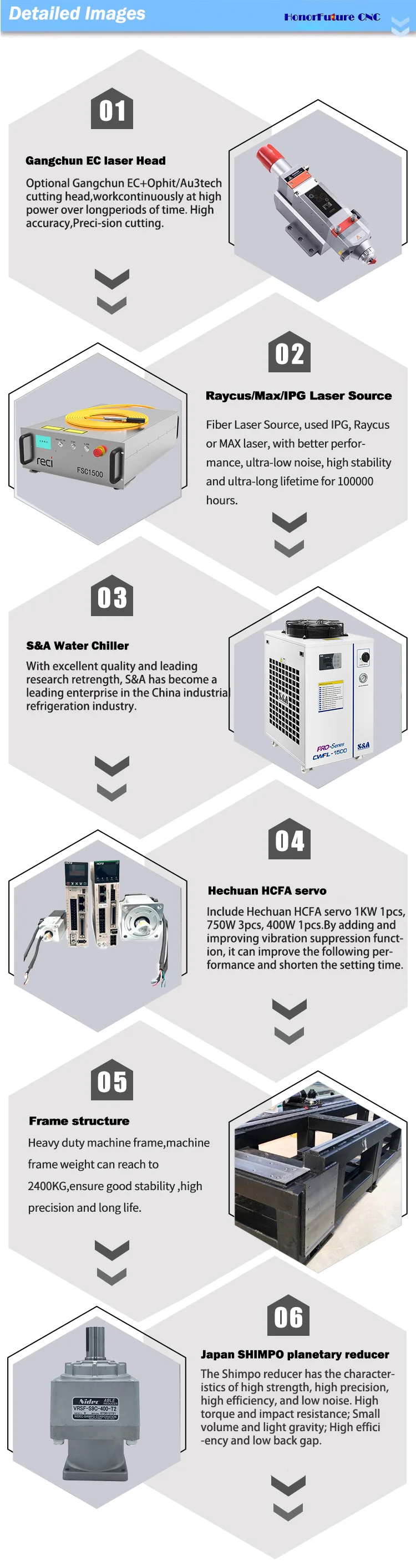

Fiber laser cutting head |
Gangchun /Au3tech laser cutting head |
|
Cooling System |
S&A water chiller |
|
Drive Motor |
Hechuan HCFA servo 1KW 1pcs, 750W 3pcs, 400W 1pcs |
|
Work Environment |
0-45°C, Moisture 45-85% |
|
Delivery time |
15-20work days (According to actual season) |

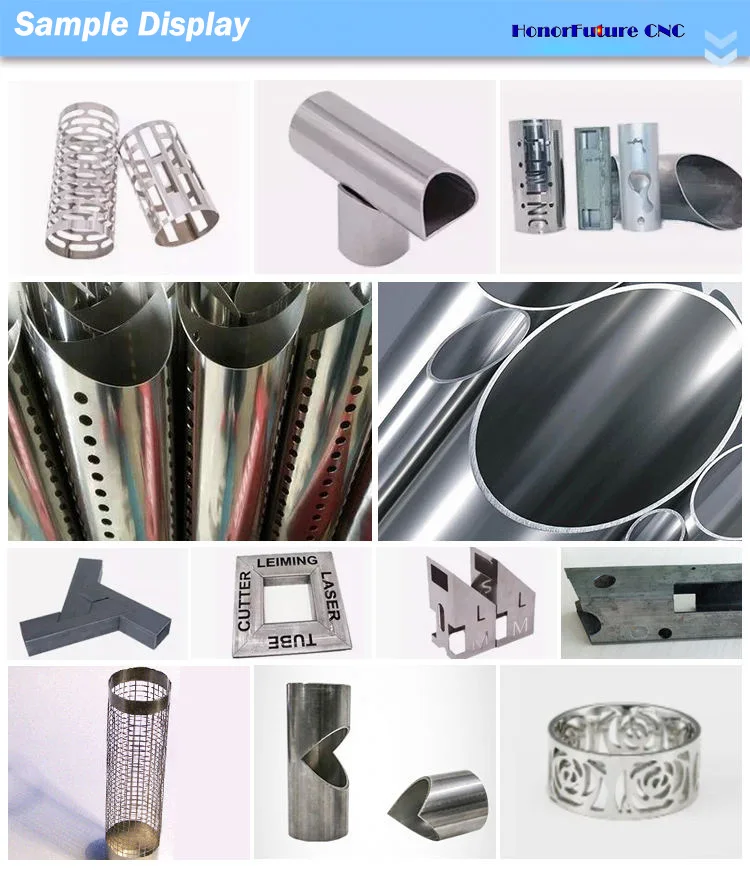

Samples
